The Features & Filters Panel allows you to view, search, sort, and filter columns.

Once your data is loaded into the application, all the features are listed in the main Features Panel. From there you can search and filter specific features, sort to easily retrieve them, and create new features.

Finding a Feature

It can be time consuming to find a particular feature in datasets with a large number of columns. To find it quickly, simply start typing into the search box in the Features Panel. The list will then only show features that match your search term.

Sorting Features

Click the Menu at the top right of the Feature Panel to change the features' display order:

• By Type: Grouped by Date, Numerical, and Categorical, then ordered alphabetically
• A-Z: Alphabetical order
• Z-A: Reverse alphabetical order
• Original: The original order of columns from the loaded data set

Tip: Sections of the features list can be collapsed and expanded when ordered based on type (see below for more information on feature types).

Creating a Feature

Virtualitics Explore has many options available to create new features from the original features in your dataset. These options can be accessed by hovering over a feature either in Spreadsheet View or in the Feature List, and then right-clicking.

For all feature types, you will have the following options:

• Histogram: Display a 1D Histogram to see the distribution of the feature, similar to the one in Spreadsheet View
• Rename: Choose a new name for your feature (note: when working with network data, this option will not appear for the Node ID column)
• Copy Name: Copies the name of the selected feature to the clipboard
• Copy All Names: Copies the names of all features to the clipboard (in the original order that they appear in the dataset) (only from the Features Panel)

Additional options are available depending on the type of the feature selected, shown below.

Feature Types

Numerical Features

For Numerical features, the following features creation options are available:

• Convert to Categorical: Copies the selected feature and casts the new feature as Categorical
• Normalize: Creates a new feature by applying the selected normalization to the selected feature:
  • Normalize [0, 1]: Reorders all values in the original feature between 0 (for the lowest value) and 1 (for the highest)
  • Log10: Normalizes the original feature (see Normalization)
  • IHST: Normalizes the original feature (see Normalization)
  • Softmax: Normalizes the original feature (see Normalization)
• Functions: Creates a new feature by applying the following functions to the selected feature:
  • 1/x: New feature contains cells created by applying the function 1/x to the selected feature’s cells
  • Binary Median: New feature contains cells with “below median” or “above median” depending on the values of the original feature for that row
  • Above/Below Zero: New feature contains cells with “Above Zero” or “Below Zero” depending on the values of the original feature for that row (note that zeros will be included in the “Above Zero” category)
• Extract
  • Quartiles: Assigns quartiles to each row depending on the values of the original feature for that row

Categorical Features

For Categorical features, you can create a new dataset by pivoting on the selected feature. Each row in this new dataset will be a unique value in the feature on which you choose to pivot. The columns will be calculated by applying the desired function (Min, Max, Mean, Median, Std, Sum, or All of the above) to each of the numerical features in the original dataset.

You also have the option to Convert to Numerical, which copies the selected feature and casts the new feature as Numerical if the original feature was Numerical Categorical, and results in a column of missing values if the original feature was String Categorical.

Datetime Features

For Datetime features, many details can be extracted from the feature. On Date features with no Time specified, extracting time will result in 12:00:00AM. On Time features with no Date specified, extracting Date will result in the current System Date. Please see Accepted Date Formats to check if your typical format is supported.

Filtering Features

You can also filter down your dataset within the features listed in the panel.

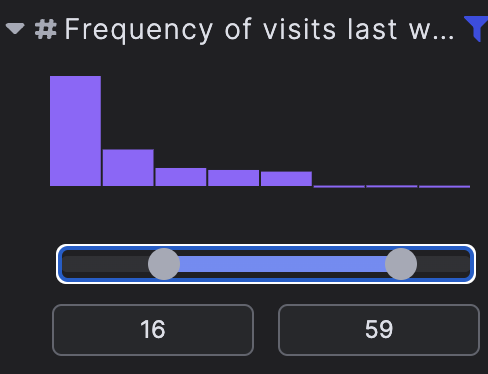

For Numerical features:

1. Hover over the feature you'd like to filter and click the dropdown arrow that appears.
2. Under the 1D Histogram that appears, click the buttons on the slider and drag to filter out the outside values.
3. (Optional) You can also enter specific values in the boxes below the slider.

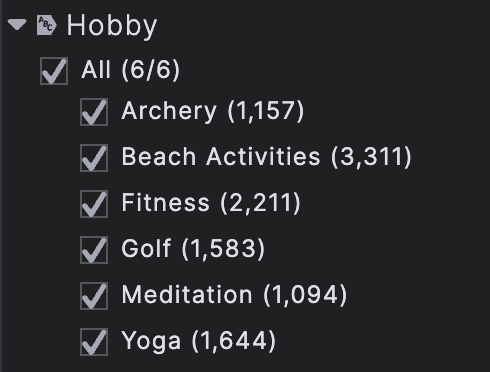

For Categorical features:

1. Hover over the feature you'd like to filter and click the dropdown arrow that appears.
2. From the checkboxes that appear, un-check any data you would like to filter out, or un-check All to remove all data from that feature.
