Visualizing Data in Mapping View

Getting Started with Mapping View

  • Updated

Mapping View is Virtualitics Explore's graphing canvas that allows you to explore multiple dimensions of your data on a variety of visualizations using out-of-the-box AI routines that accelerate speed to insight.

Once you've loaded your data into Virtualitics Explore and you've examined your data in Spreadsheet View, you'll be greeted with Mapping View.

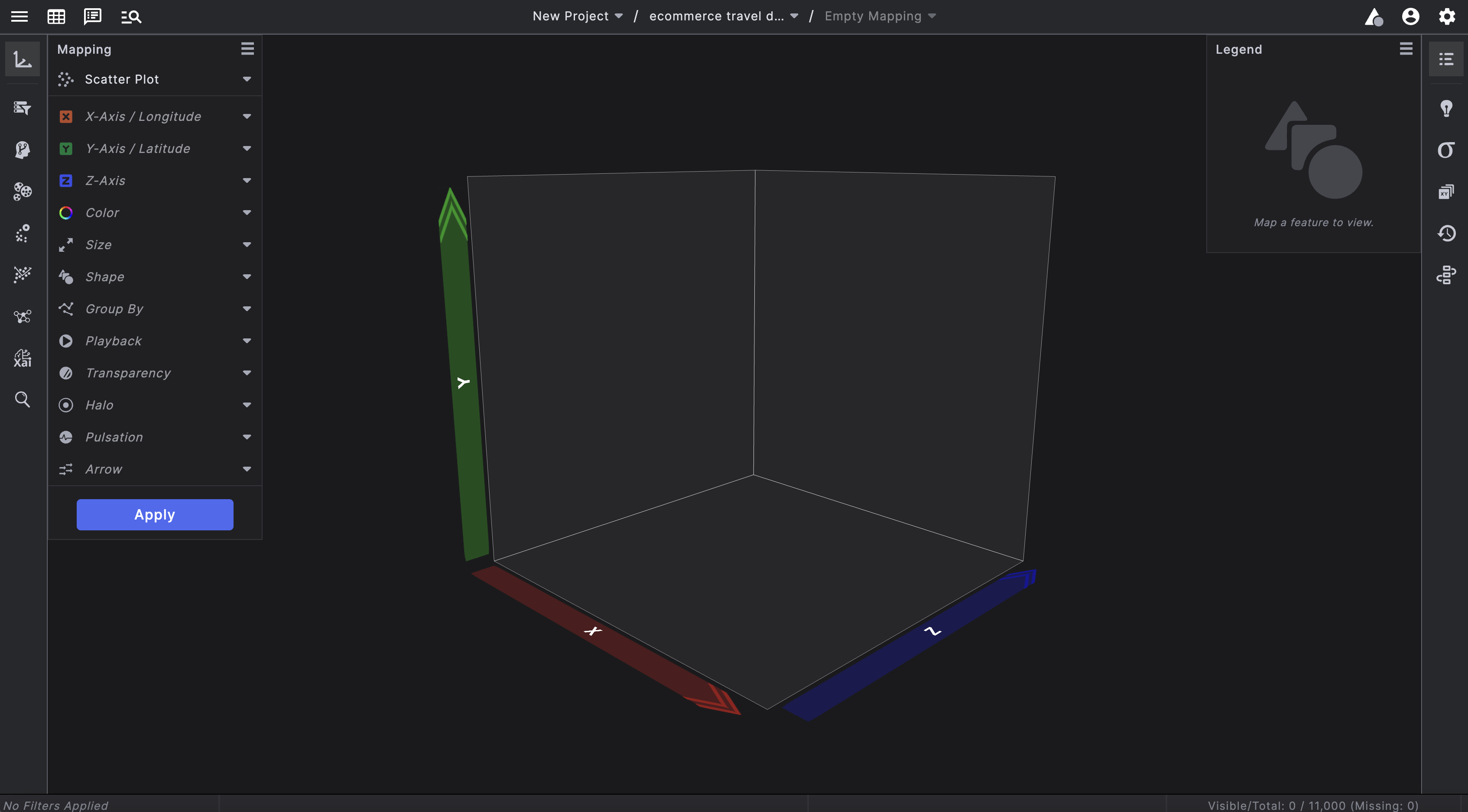

Mapping View opened with no data points visible or information loaded



Default View

The default view in Mapping View is a blank canvas, ready for you to set up parameters to review your data or run Virtualitics Explore's no-code AI routines.

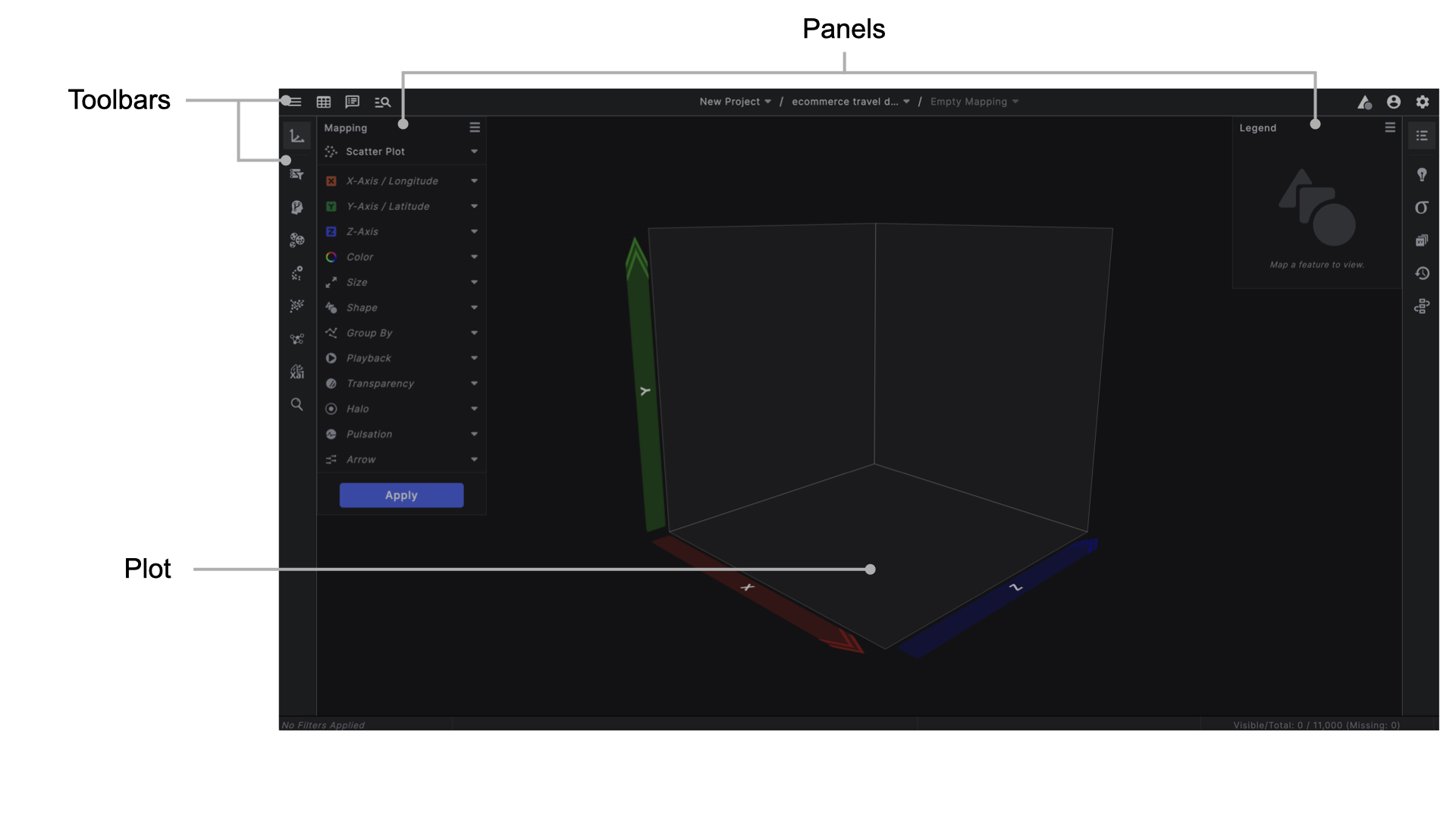

There are three key user elements in Mapping View:

Toolbars
Panels Panels are your primary way of interacting with parameters in Mapping View. Clicking on an icon for most tools will open a Panel with additional parameters and functions within.
Plot The plot is where you'll see your data visualized. It can be manipulated in 3D so you can see every facet of your data.


Upon opening Mapping View for the first time in a project, you'll see these elements with two panels already opened: the Mapping Panel and the Legend Panel.



Mapping Panel

The Mapping Panel allows you to choose a Plot Type and set specific parameters for how you would like your data to be visualized on the plot.

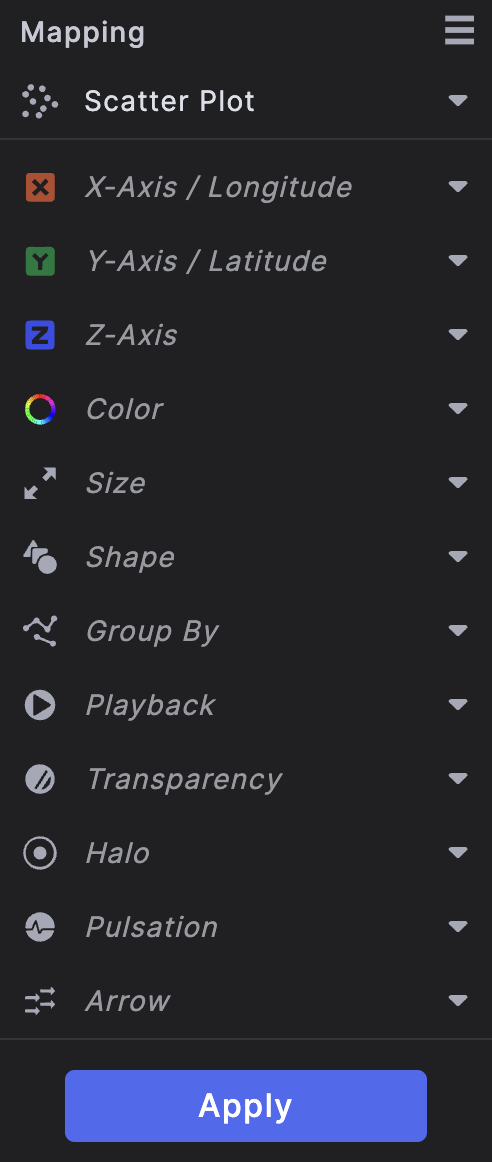

Mapping Panel with multiple parameters to configure



Legend Panel

The Legend Panel will populate once your plot is created. Depending on the parameters you've set up, you'll be able to see data broken down into key categories, and if you are using Color, Shape, or Group By, see what data is represented by which color, shape, or group.

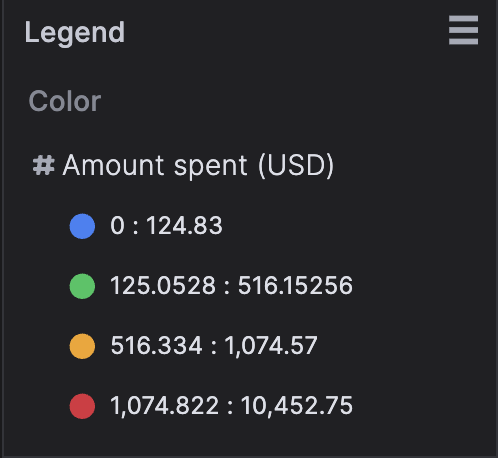

Legend Panel with data populated showing four color categories



Additionally, you can Isolate specific categories of data on your plot.

To Isolate a category in the Legend Panel:

  1. Click on the Icon or the Category in the Legend Panel for the category you want to isolate. This will show only this category. Click again on the same category to re-show all.
  2. Once you've isolated a category, you can click on another category to re-add it to your view.

Note: You can adjust the behavior of clicking on an icon or category to hide that selection instead. To do so, click the gear icon at the top right of Virtualitics Explore to open the Settings menu, navigate to General, scroll to Legend Interaction, and select Click to Hide.
